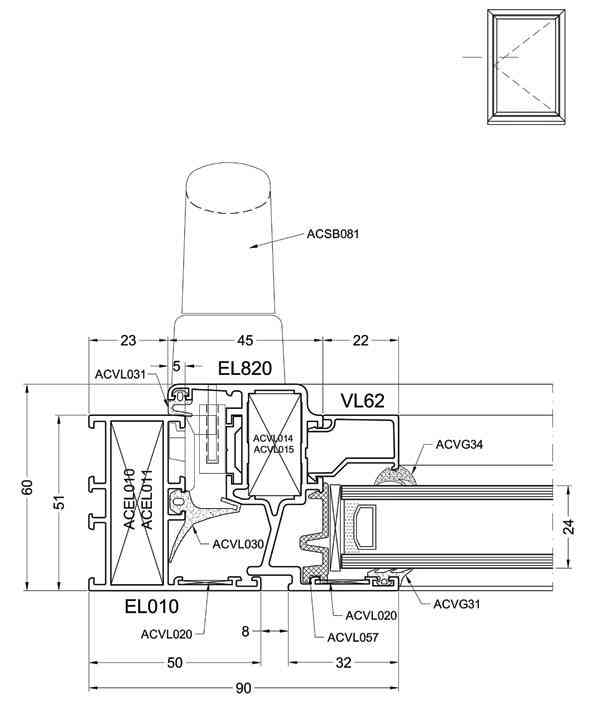

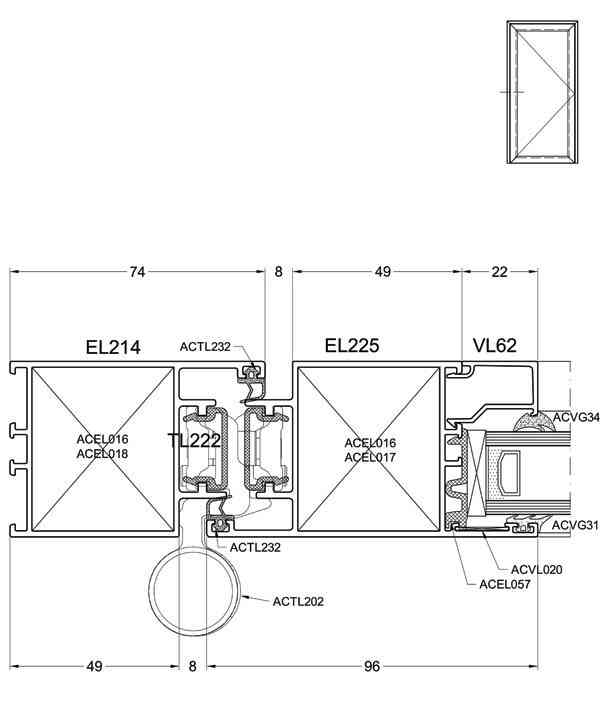

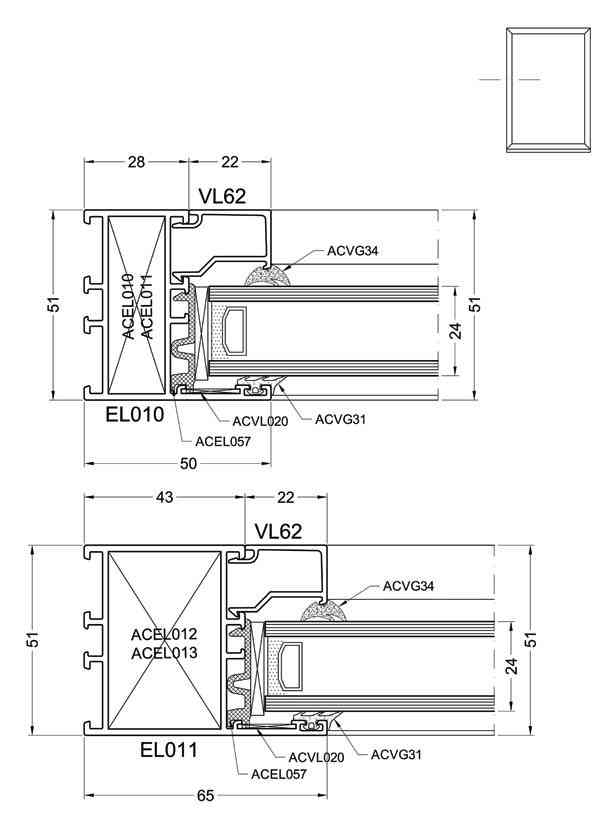

Econoline (EL)
Characteristic of the system
Ecoline is a system with no thermal insulation for fixed and opening structures. It is also suitable for building indoor walls with windows. 51mm of profile depth.which is 6 mm more than the widely used depth, improves designing freedom and eases the constructors work.
The system is capable of accepting glazing with wall thickness between 3 and 38mm.
Ecoline is compatible with other Aliplast systems, glazing clamps, insulations and reinforcements are similar.
Applications
– winows,door and dividing walls in public and industrial buildings/ office type rooms/ , sliding windows
– the system is suitable to create sliding and swing doors and walls in any desired angle and also to enforce the already existing built in systems

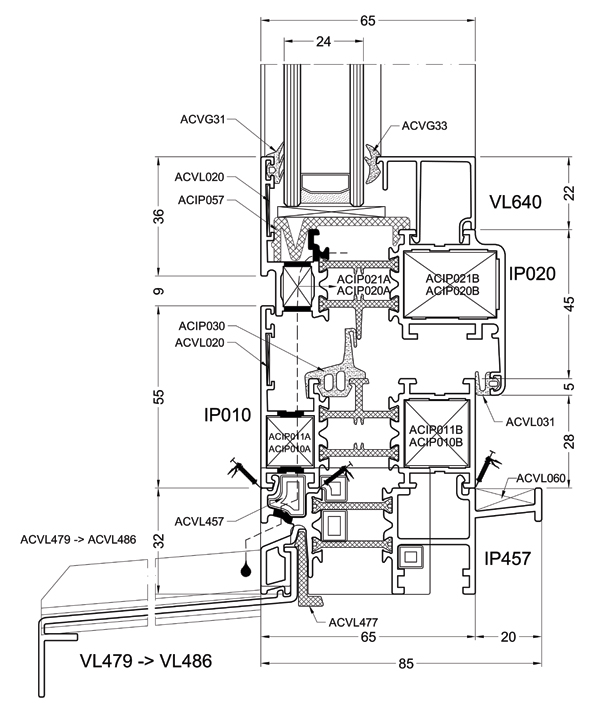

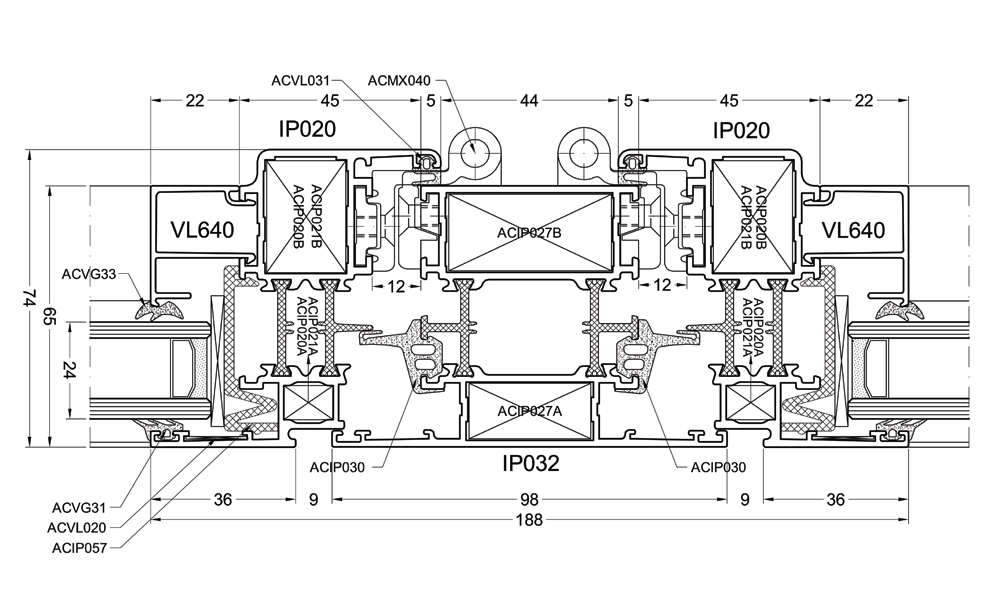

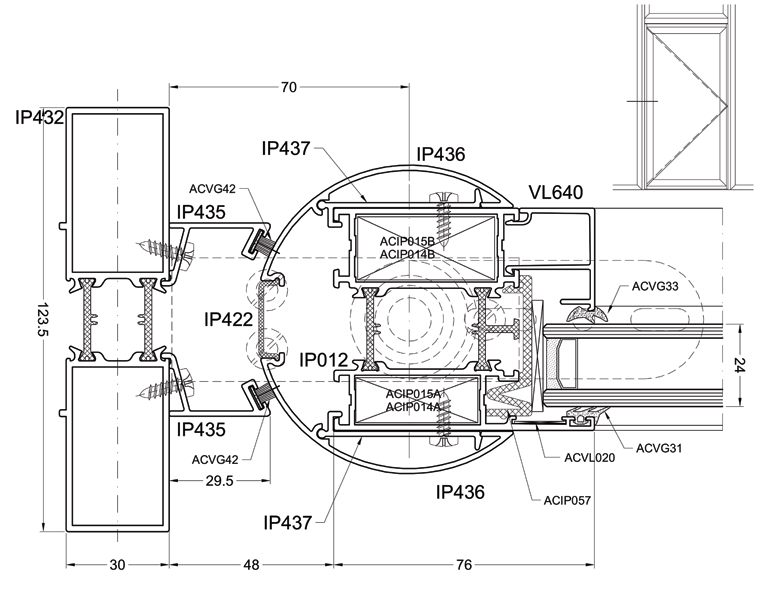

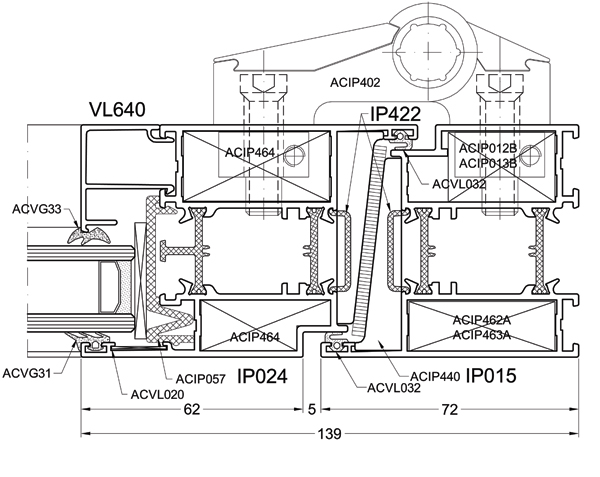

Imperial (IP)
Characteristic of the system
Window and door system with thermal break.
– three chamber system
– thermal break: The profiles for this series are constructed of 2 hollow extrusions separated from one another by polyamide strips PA 6. 6. 25 reinforced with glass fibre. A gluing thread, rolled and pushed in together with the thermal break profile, ensures a strong adhesion after melting and flowing, when the profiles are heated in the hardening furnace
– built- in depth: outer frame 65mm, sash 74 mm
– glazing: from 18 up to 51 mm
– various forms of hardware and finishing available
Applications
– flush, single or double sash doors, open in, swing doors ( double action)
– various types of windows

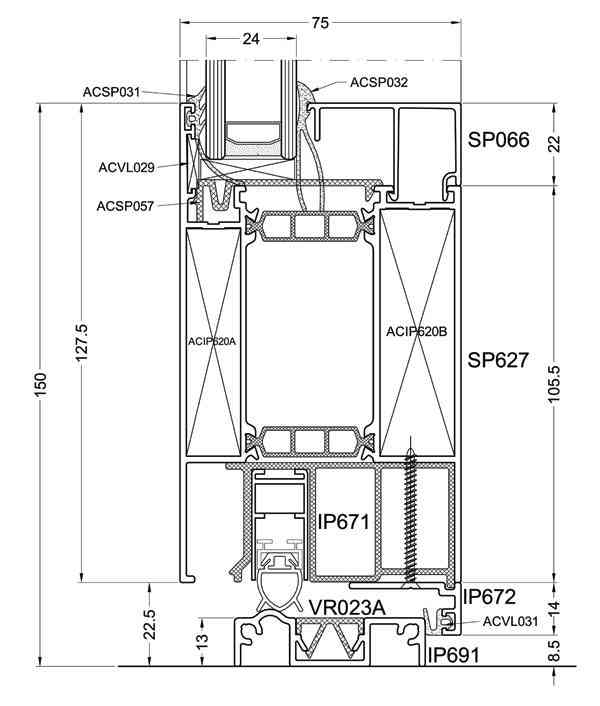

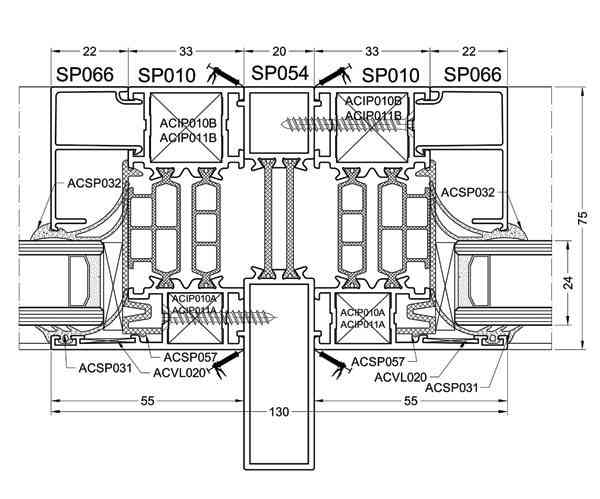

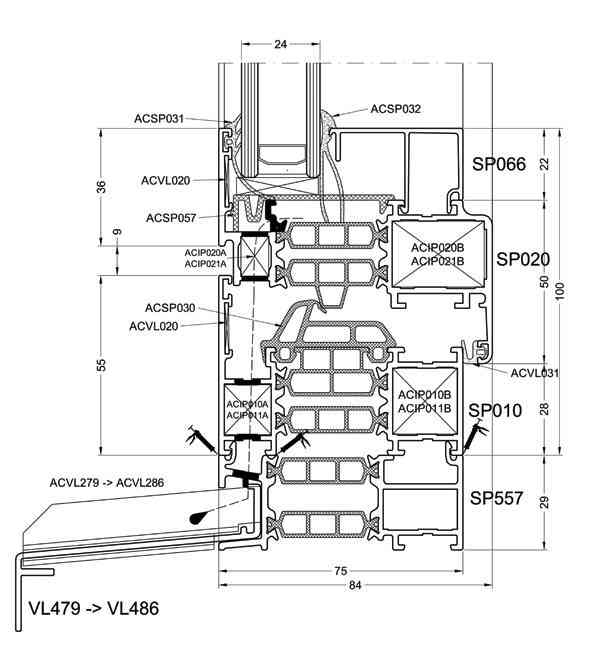

Superial (SP)
Characteristic of the system
– built-in depth : outer frame 75 mm, sash 84 mm
– glazing rebate: 22mm
– harware rebate:according to the current European sizes (EURONUT)
– sealings: with extruded EPDM rubbers
– glazing: double glazing from 21 up to 61 mm
– various forms of hardware and finishing available
– possible to bend profiles
– rounded glass beads are available for a soft- look
– windows can be joined with variable couplings or standard fixed couplings ( such as 90° and 135°) using profiles with thermal break
– adapter profiles for roller shutters
– window sill profiles in various depths available
Star
A new highly insulating for aluminium window and door system.
– U values, one of the best in the market= Uf from 0,6/ m² K
– frame width: 900 mm ( sash 99 mm)
– glazing height: 25 mm
– glazing bar flush with frame and sash
– reduced number of accessories= faster production
– new flat door – easy fabrication- newcylindrical hinge available
– cleats- crimp and screw
– central gasket coextruded
– hardware mounted in aluminium, no screws in thermal breaks
– minimal milling required to mount the hardware
– 1 type of isolation for frame and sash
– glazing thickness:from 17mm to 82 mm
– glassisolation the same in window and door profiles
– possibility of glazing on the outside
– cylindrical hinge (door) : modern, elegant and esthetic solution, invisible adjustment in 3 direction (available in all RAL colour, anodised)
– 1T connector- reduced number of accessories= faster production
-modern design

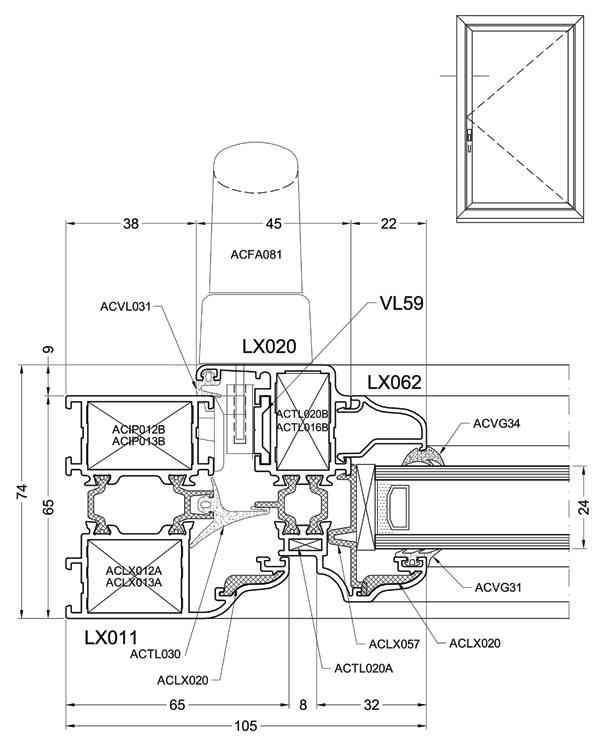

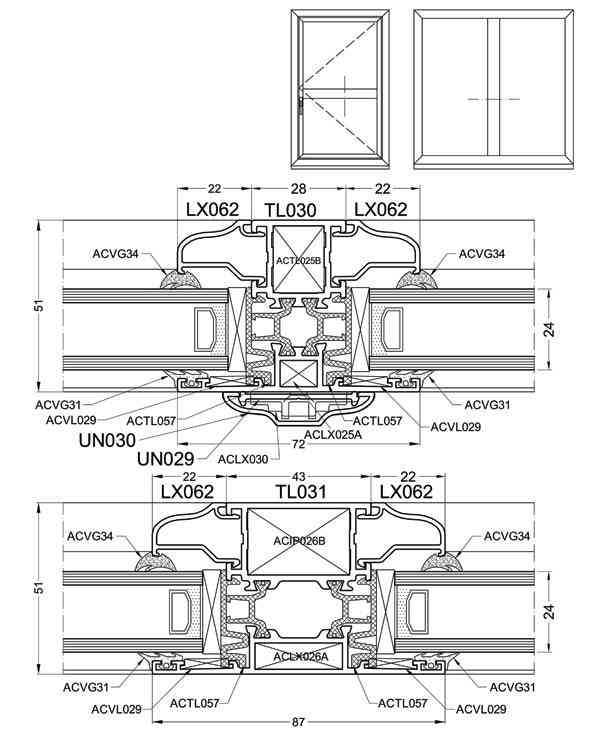

Luxus (LX)
Characteristic of the system
This series of high quality profiles with thermal breaks is applicable for acoustic and thermal insulation. The profiles for this series are constructed of 2 hollow extrusions separated from one another by polyamide strips PA 6. 6. 25 reinforced with glass fibre.
Applications
– fixed frames for single or double glazing
– single or double sash, side- hung, open in windows
– tilt and turn windows, tilt in only windows, tilt and slide windows with appropriate hardware
– pivot windows, horizontal

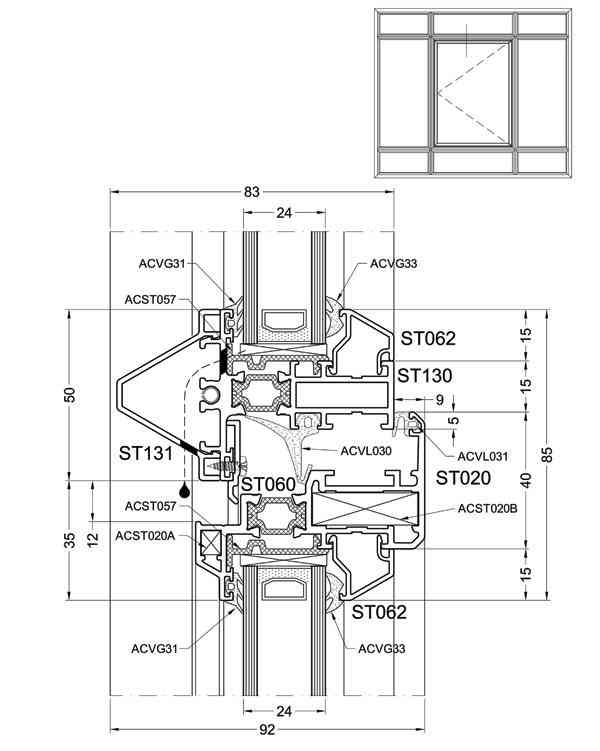

Steel Look (ST)
Characteristic of the system
This series of high quality profiles with thermal break are applicable where more severe standards of acoustic and thermal insulation are required.
– The profiles for this series are constructed of 2 hollow extrusions separated from one another by polyamide strips PA 6. 6. 25 reinforced with glass fibre
– The Steel Look is different from other window systems due to its slim sight lines that mimic those common to steel profiles
– 3- chamber system
– Built- in depth: outer frame 83 mm, sash 67mm
– Glazing rebate: 15 mm. Sealings: centre seal and inside stop rubber in extruded EPDM.
– Glazing: from 21 up to 26 mm
– Various forms of hardware anjd finishing available
– Rounded glass beads ara available for a soft- look
Applications
– fixed frames for single or double glazing
– single or double sash, side- hung, open in windows
– internally open tilt windows
